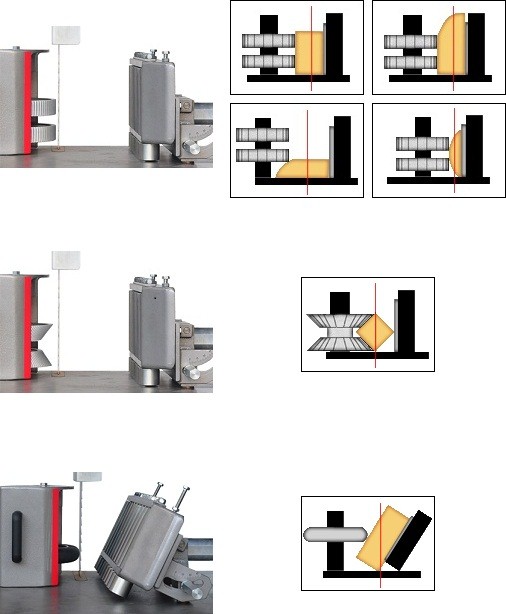

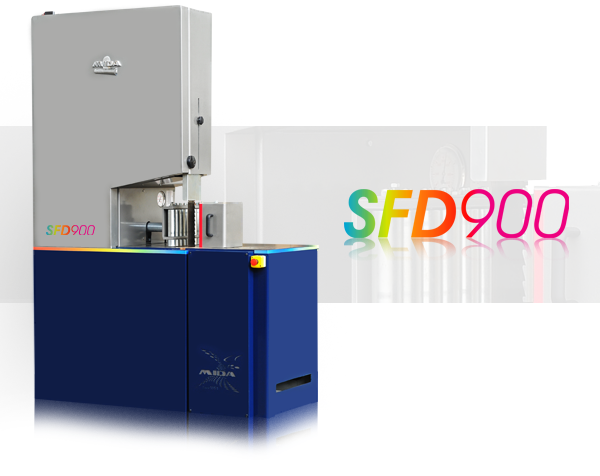

A desdobradora da MIDA. Assente numa robusta estrutura sobredimensionada, a SFD900 tanto está à vontade a trabalhar numa carpintaria ou numa serração. Pode desdobrar vigas, pranchas, costaneiros, em ângulo, tudo o que se pode esperar duma máquina a sério.
A MIDA SFD900 conta com alguns atributos que a distinguem da concorrência, como o chassis de grande resistência, os volantes em ferro fundido, o travão pneumático de disco com pinça dupla, o variador electrónico de velocidade e o tensionamento hidráulico da fita de serra.
Flywheel diameter diameter…………………………….…… 915 mm
Flywheel width …………………………………..………………… 90 mm
Max. width of the blade.…….……………………….……..… 100 mm
Max. blade thickness…... ………...…………………………… 1,0 mm
Min. blade thickness………………………………………….… 0,8 mm
Max. length of the blade...………….……………………..… 5.570 mm
Min. length of the blade……………….…………………….. 5.470 mm
Speed of the blade…………..………………………..……….... 30 m/s
Max depth of cut ……………………….………………………… 380 mm
Max. opening of the feed rollers to the saw line…………. 230 mm
Max. opening between the roller fence and the saw line.. 305 mm
Diameter of the feed roller…………………………………. 204 mm
Working height …...............…………………………….……. 950 mm
Fence tilting……….. ……………………………………..……… 0-45º
Main motor power………………………………………..……. 15Kw
Feed motor power……………………………………………… 0,75Kw
Feed speed ………………………………………………………… 5 - 40 m/min
Diameter of the exhaust hood….. ………………………. 180 mm
Machine height………. ……………………………….………. 2.340 mm
Machine length……….. ………………….………………….. 1920 mm
Machine width………………………….………………………. 900 mm
Machine weight. …………………......….…………………… 1.900 kg
* Customized motor power ratings are available under request *
