MIDA thicknessers were developed in conformity with the European Safety Standards, combining the most updated technology with a modern design.
The feeding system works through a gear box and a feed speed variator easy to operate through a lever.
Therefore an uniform dressing of all boards is assured.
A solid construction of the body and the machine table in cast iron assure a reliable and longlive operation.
|
|
|
 |
CONTROL PANEL The control panel is located in the front of the machine, following on easy ond quick operation through a millimetric scale, a mechanical counter with a precision of tenths of a millimetre for a total capacity of 230 mm. OPTIONAL
|
|
FEEDING SYSTEM Dully dimensioned top feed rolers and fractioned infeed pressure. shoes with hord chrome treatment assure a trouble-free and efficient dragging as well os a perfect dressing in any kind of Table rollers are odjustable in height allowing an easy feeding of the machine with wet or irregulor boards. Optional: Fractioned top rolleis. |
 |

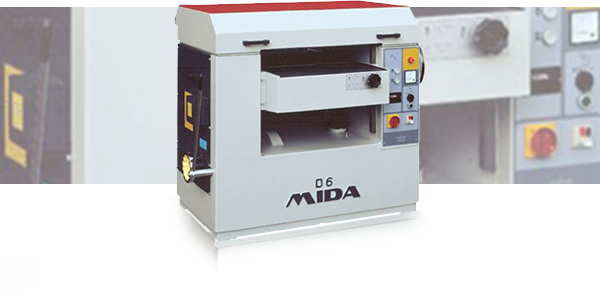

Thicknessers, MODEL D6
Technical Features:
| Max thickness width | 610 mm |
| Max thickness height | 230 mm |
| Motor power | 10 HP |
| Feed speed | 7,5 a 58 m/min |
| Cutting spindle speed | 4.800 r.p.m. |
| Diameter of exausting hose | 150 mm |
| Dimensions | 1470 x 1120 x 1160 mm |
| Volume | 3 m³ |
| Approximate weight | 1.250 Kg |
